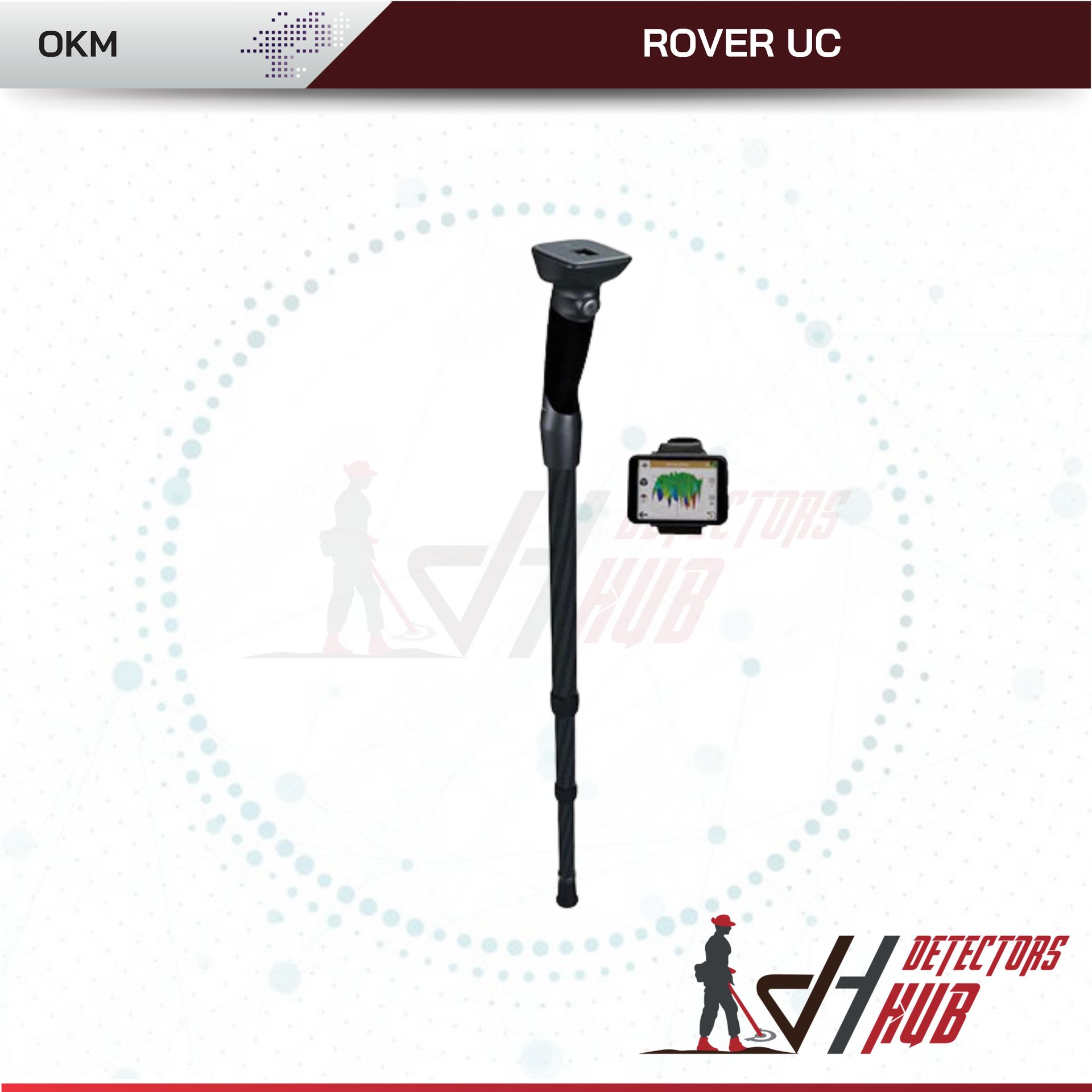

OKM Rover UC 3D Ground Scanner

UC ROVER: detector for the unnoticed treasure hunting as a walking stick

Depth measurement: Customers discovered items up to 20 m deep.

Cases of use: cavity detection, treasure hunting, archeology, military detection

Modes of operation: ground scanning, pinpointer, magnetometer

Objects detectable: trunk, hole, and tunnels.

 FEATURES OF UC ROVER 3D Ground Scanner

3D Visualization

3D Ground Scan

Color display / Touchscreen

GPS (disengageable)

GST / EMSR

Height adjustment

Live Sound

Multilingual operation

Wireless technology

DESCRIPTION

Undercover Metal Detector

The Rover Series 3D metal detectors are not just simple audio detectors. In addition, excellent 3D graphics of the scanned underground can be created. Because of the Single Sensor-Technology these detectors are suitable for the detection of hidden objects.

Rover UC is the new metal detection technology that enables a new, smaller, lighter and more compact detector to be introduced than previously built. The unit is controlled by smartphone so a computer does not need to see buried objects.

The Metal Detector Rover UC is disguised as a stick that can be used to search areas where common detectors cannot be used. You can scan places you can never scan before without exciting the public interest and getting curious looks.

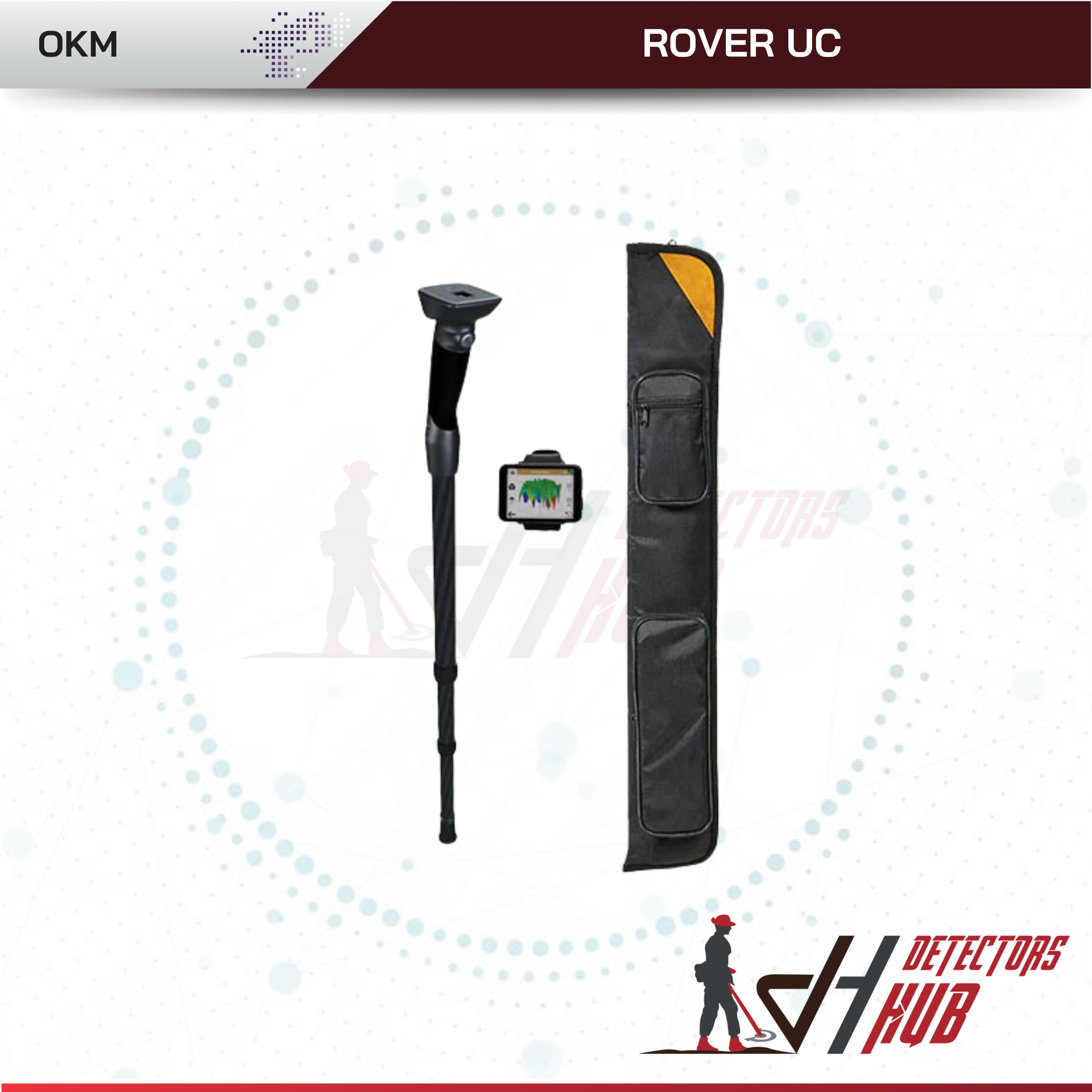

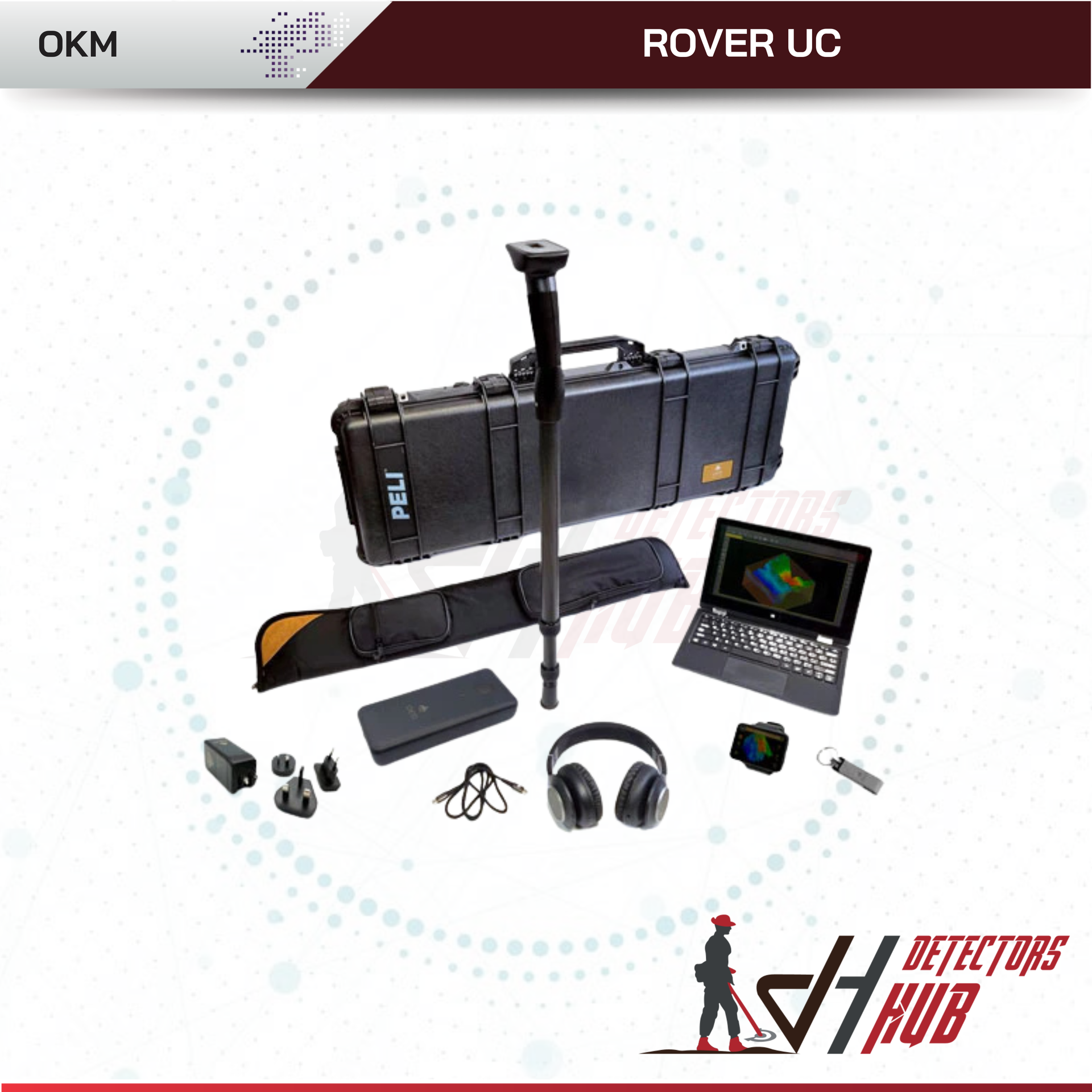

DELIVERY SCOPE

1x        Controller (smartphone with headphones, USB cable and charger)

1x        Wireless Telescopic Probe

1x        Software Visualizer 3D Studio Standard Edition

2x        AA battery 1.5 V

1x        Carrying bag

1x        Shipping carton

1x        Quick Start Guide

Specifications

Telescopic Probe

• Dimensions (H x W x D): 730 – 1400 x 40 x 60 mm
• Weight: about 0.65 kg
• Operating temperature: –10°C – 50°C
• Storage temperature: –20°C – 60°C
• Waterproof: No
• Processor: Dual-system, Atmel AtMega CPU, 20 MHz
• Voltage: 2x AA Primary battery (1.5 V, 2600 mAh) or 2x Rechargeable NiMh (1.2 V, 2600 mAh)
• Operating time: about 10 h
• Air humidity: 5% – 75%
• Sensor technology: SCMI-15-D
• Technology: GST / EMSR
• Interconnect: Bluetooth, Class 2

Computer minimum requirements

• CD-ROM drive: minimum 4x
• Interface (Data transmission): USB
• Free disk space: minimum 50 MB
• Working memory (RAM): minimum 256 MB
• Graphic card: minimum 128 MB, OpenGL-compatible
• Processor: Minimum 1.2 GHz
• Operating system: Windows Vista, Windows 7, Windows 8, Windows 10

Data transmission

• Technology: Bluetooth
• Frequency: 2.4 – 2.4835 GHz
• Maximum Transfer Rate: 1 Mbps
• Receiving Sensitivity: –85 dBm
• Maximum Range: approx. 10 m

The technical data are average values. Minor deviations are possible during operation.
