Garrett Multi-Zone Walk-Through Metal Detector
Advanced 20-Zone Security Screening for High-Traffic Entrances
The Garrett Multi-Zone Walk-Through Metal Detector is a professional-grade security screening solution designed for organizations that require fast, accurate, and reliable people screening. Engineered with 20 independent detection zones, it precisely identifies the location of concealed metal objects while maintaining high throughput for busy entrances.
Whether you're securing schools, government buildings, corporate offices, airports, stadiums, hotels, event venues, warehouses, or correctional facilities, the Garrett Multi-Zone delivers industry-leading detection performance with simple operation and exceptional value. The detector also features automatic frequency selection, intuitive controls, bright LED indicators, and weather-resistant construction for both indoor and outdoor use
Why Choose the Garrett Multi-Zone?
Unlike traditional single-zone walk-through detectors, the Garrett Multi-Zone pinpoints the exact location of detected objects using 20 vertical detection zones, allowing security personnel to perform quicker secondary inspections and reduce waiting times.
Its intelligent Digital Signal Processing (DSP), automatic environmental calibration, and advanced interference filtering ensure consistent performance even in challenging environments with electrical noise.
Key Features
✓ 20 Independent Detection Zones
Pinpoints the exact location of one or multiple metal objects simultaneously, reducing search time and improving checkpoint efficiency.
✓ High Throughput Screening
Designed for continuous operation in busy entrances without slowing pedestrian traffic.
✓ Auto Setup Technology
Automatically scans the surrounding electromagnetic environment and selects the optimal operating frequency.
✓ Bright LED Zone Indicators
High-visibility LED lights identify the precise location of detected objects, even under direct sunlight.
✓ Over 15 Security Programs
Pre-configured detection settings for:
- Schools
- Airports
- Government facilities
- Courthouses
- Stadiums
- Public events
- Mass transit
- Corporate buildings
- Loss prevention
- Correctional facilities
✓ Adjustable Sensitivity
Up to 200 sensitivity levels allow security personnel to tailor detection performance to specific security requirements.
✓ Weather Resistant Design
Built for indoor and outdoor installations with IP-rated environmental protection.
✓ Tamper-Protected Controls
Secure access codes and lockable control panel prevent unauthorized changes.
✓ Easy Installation
Modular construction allows fast assembly and deployment.
✓ Optional Battery Backup & Mobility
Optional battery module and caster kit provide portable operation for temporary events and emergency deployments.
Ideal Applications
The Garrett Multi-Zone is trusted across numerous industries for dependable entrance security.
Suitable for:
- Airports
- Government Buildings
- Schools & Universities
- Hospitals
- Hotels
- Shopping Malls
- Stadiums
- Concert Venues
- Convention Centers
- Warehouses
- Manufacturing Facilities
- Corporate Offices
- Embassies
- Correctional Facilities
- Military Installations
- Religious Institutions
- Public Events
Benefits
- Faster security screening
- Reduced false alarms
- Accurate threat localization
- Minimal operator training required
- Increased checkpoint efficiency
- Reliable operation in high-traffic environments
- Lower total cost of ownership
- Excellent value for professional security installations
Technical Highlights
| Feature | Specification |
|---|---|
| Detection Zones | 20 Independent Zones |
| Sensitivity Levels | Up to 200 |
| Programs | 15+ Preset Security Programs |
| Frequency Selection | Automatic Auto-Scan |
| Display | Bright LED Zone Indicators |
| Operation | Indoor & Outdoor |
| Environmental Protection | Weather Resistant (IP Rated Models Available) |
| Control Access | Password Protected |
| Installation | Modular Design |
| Power Backup | Optional Battery Module |
| Mobility | Optional Casters |

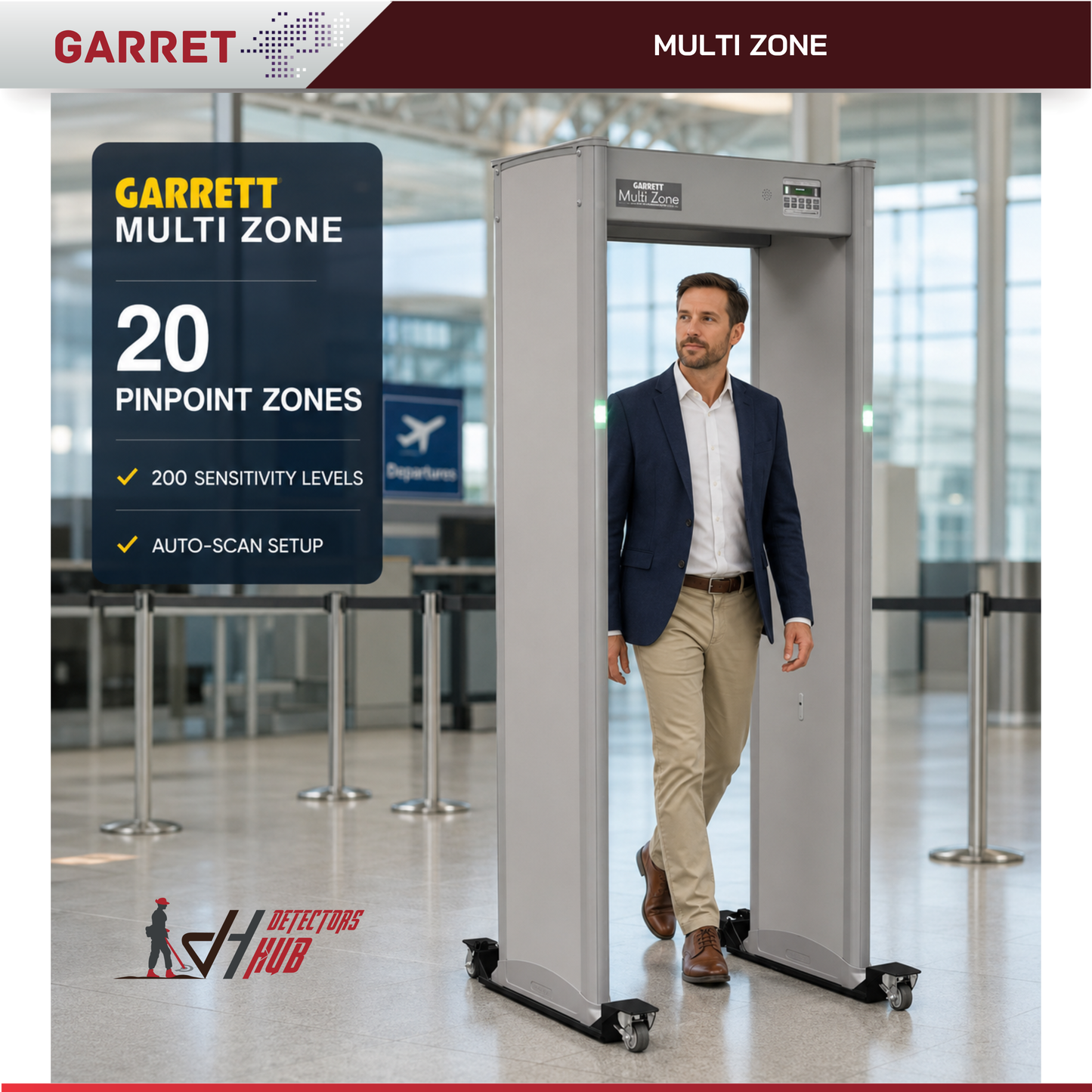

Pictured: MultiZone is shown with optional casters and battery module
Product Specification
|
Sensitivity |
Up to 200 distinct sensitivity levels |
|
Zone Indications |
20 zones |
|
Overhead Control Unit |
All electronics—LED, alarm light, bar graph, control touchpads—are integrated to eliminate exposed wires, and tampering. |
|
Tamper-Proof Settings |
Three levels of access control |
|
Self Diagnostic Program |
Complete and automatic |
|
Zone Sensitivity Boost |
20 Independently adjustable boosts |
|
Battery Packs |
1.5 amp-hour battery module provides typical 1 hour operating time. Optional 14 amp-hour battery module provides up to 10 hours operating time. Both batteries are intergrated to eliminate exposed wires, tampering. |
|
Warranty |
24 months, Limited Parts/Labor |
|
Passageway Interior Size |
Width 30" (0.76 m) Height 80" (2.03 m) Depth 23" (0.58 m) |
|
Overall Exterior Size |
Width 35" (0.90 m) Height 87" (2.21 m) Depth 23" (0.58 m) |
|
Shipping Size |
Width 35.5" (0.90 m) Height 91.5" (2.32 m) Depth 6.25" (.16 m) |
|
Shipping Weight |
151 lbs. (68.5 kg) |
|
Temperatures |
Operating on AC: -4º F (-20º C) to +140º F (60º C) Battery operation: 14º F (-10º C) to +140º F (60º C) Humidity to 95% non-condensing Storage: -22º F (-30º C) to 176º F (80º C) Battery storage: -14º F (-10º C) to +176º F (80º C) |
|
Power |
Fully automatic 100 to 240 VAC, 50 or 60 Hertz, 40 watts; no rewiring, switching or adjustments needed. |
|
Regulatory Information |
Meets Electrical Safety and Compatibility Requirements for CE, FCC, CSA, IEC, ICNIRP, IEEE. Additional certifications pending. |
|
Weatherproofing |
Meets IP 55, IEC 529 Standard for moisture, foreign matter protection |
|
Construction |
Attractive scratch and mar-resistant laminate. Detection Head and Support: heavy-duty aluminum. |
|
Access Control (optional) |
Relay Module provides relay contact via RS 485 cable |
|
Remote Control (optional) |
Desktop Remote Control with Zone Indication and/or via the network with IoT Control Module (iC Module). |
|
Networking (optional) |
Manage individual or groups of walkthroughs and perform statistical analysis of throughput using iC Module. |
|
Random Alarm Feature |
Adjustable from 0 to 100 percent. |
Garrett Walk-Through Detector Safety
Garrett walk-through metal detectors exceed U.S. and worldwide regulatory criteria for electromagnetic safety. There is no indication, despite extensive investigation, that Garrett goods are harmful for pregnant women, medical devices (such pacemakers), or magnetic recording medium. However, it is important to follow by the recommendations made by doctors and the producers of medical equipment regarding metal detectors.
Garrett walk-through metal detectors exceed U.S. and worldwide regulatory criteria for electromagnetic safety. There is no indication, despite extensive investigation, that Garrett goods are harmful for pregnant women, medical devices (such pacemakers), or magnetic recording medium. However, it is important to follow by the recommendations made by doctors and the producers of medical equipment regarding metal detectors.
Why Professionals Choose DetectorsHub
DetectorsHub is a trusted supplier of professional metal detectors, gold detectors, security inspection equipment, and handheld XRF analyzers. We operate a physical showroom in Dubai, United Arab Emirates, where customers can view selected products, receive expert advice, and benefit from professional in-store training on eligible equipment.
Our team supports customers before and after their purchase with product consultation, technical guidance, and after-sales assistance. Whether you are a treasure hunter, gold miners, geologist, security professional, jeweler, refinery, contractor, or industrial inspector, we are committed to helping you select the right equipment for your needs.
- ✔ Physical showroom in Osha plaza 2, Shop no: 5, Deira Waterfront ,Dubai, UAE
- ✔ Professional in-store training on selected products
- ✔ Expert product consultation
- ✔ Genuine products from leading global manufacturers
- ✔ After-sales assistance
- ✔ Serving customers across the UAE and internationally
Additional Information
Reviews
Frequently Asked Questions (FAQs)
Find answers to the most common questions about this product.
What types of metal objects can the Garrett Multi Zone detect? +
The Garrett Multi Zone detects both ferrous and non-ferrous metal objects, including firearms, knives, weapons, handcuffs, metal tools, and other prohibited metallic items. Sensitivity settings can be adjusted to detect smaller objects while helping reduce unnecessary alarms from everyday item
How many detection zones does the Garrett Multi Zone have? +
The Garrett Multi Zone features 20 independent vertical detection zones, allowing operators to accurately identify the location of one or multiple metal objects on a person. Bright LED indicators show exactly where the object is detected, making secondary screening faster and more efficient.
What are the main features of the Garrett Multi Zone? +
The Garrett Multi Zone includes several advanced features, including:
20 independent detection zones,
Over 15 pre-programmed security applications,
Up to 200 adjustable sensitivity levels,
Automatic frequency selection (Auto Setup),
Bright LED zone indicators,
Directional traffic counter,
Built-in backup battery,
Weather-resistant IP55 construction,
Tamper-resistant access controls.
Can the Garrett Multi Zone detect multiple metal objects at once? +
Yes. The detector can identify multiple concealed metal objects simultaneously and display their locations using its 20-zone LED indication system. This helps security personnel conduct faster and more accurate secondary inspections.
Does DetectorsHub provide training for the Garrett Multi Zone? +
Yes. Every Garrett Multi Zone purchased from DetectorsHub includes professional in-store product training. Our specialists demonstrate installation, system configuration, sensitivity adjustments, alarm interpretation, and best operating practices to ensure your security team can use the detector effectively.
Why buy the Garrett Multi Zone from DetectorsHub? +
When you purchase the Garrett Multi Zone from DetectorsHub, you receive:
- Genuine Garrett products
- Expert product consultation
- Professional in-store training
- Installation guidance
- Warranty assistance
- Worldwide shipping
