OKM Gepard GPR 3D

Powerful and flexible: Ground Penetration Radar with an all-way unprotected transmission system that reaches depths up to 40 metres.

Depth: Up to 40 meters deep objects were found by clients

Cases of use: archaeology, geoengineering, hunting for treasure

Modes of operation: Live Stream, Ground Scan

Detectable objects: pipels, cavities, wires, tunnels, bunkers and foundations. underground objects objects:

FEATURES

2D Visualization

3D Visualization

3D Ground Scan

Color display / Touchscreen

GPS (disengageable)

Height adjustment

Internal memory

Live Stream

Multilingual operation

Rechargeable high-capacity battery

Speaker

Wireless technology

DESCRIPTION

 The Gepard GPR is a highly flexible, potent Ground Penetration Radar for the detection of underground objects such as pipelines, cavities, cables, ducts, tunnels and bunkers.

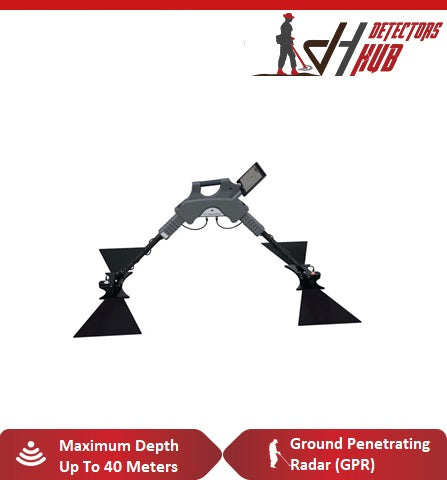

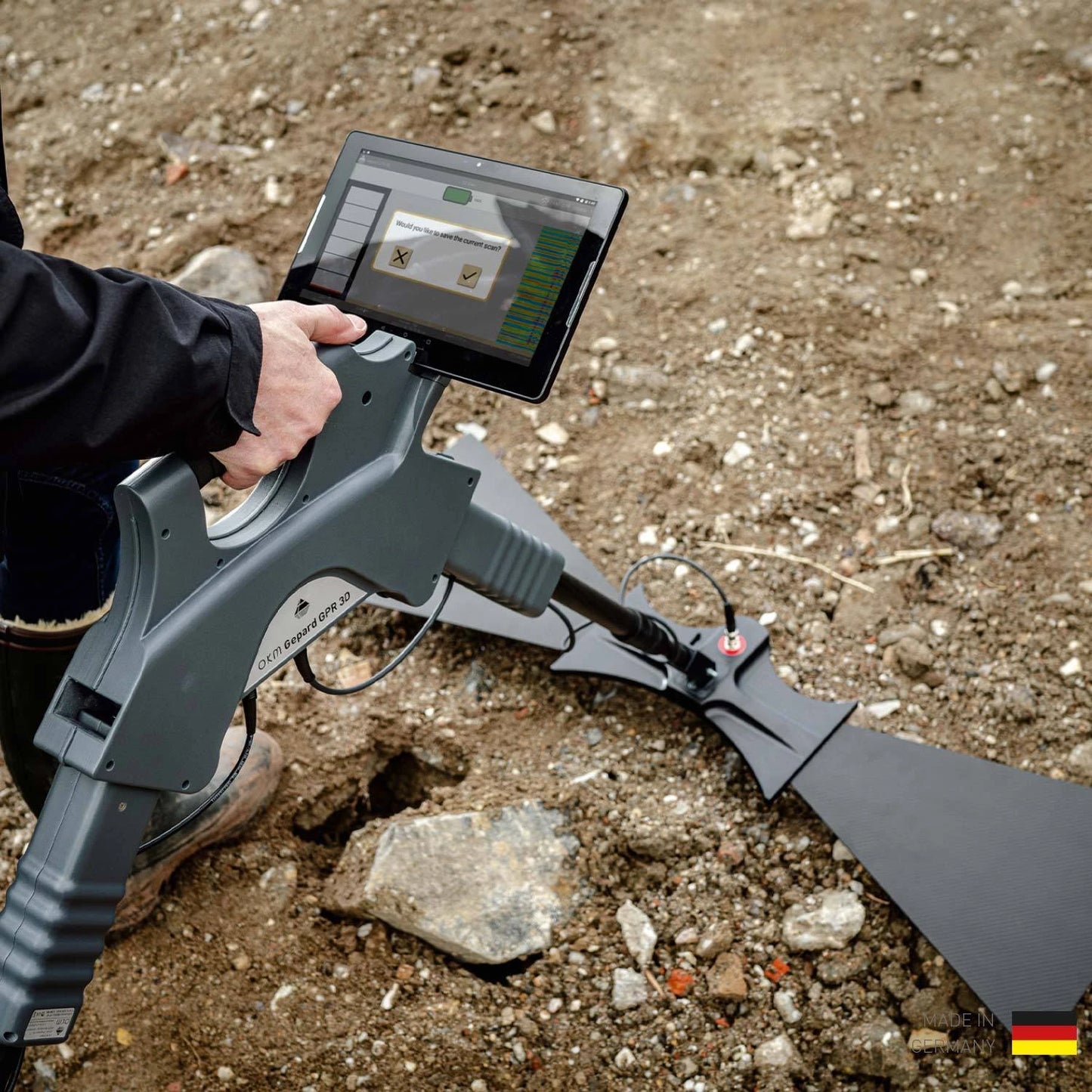

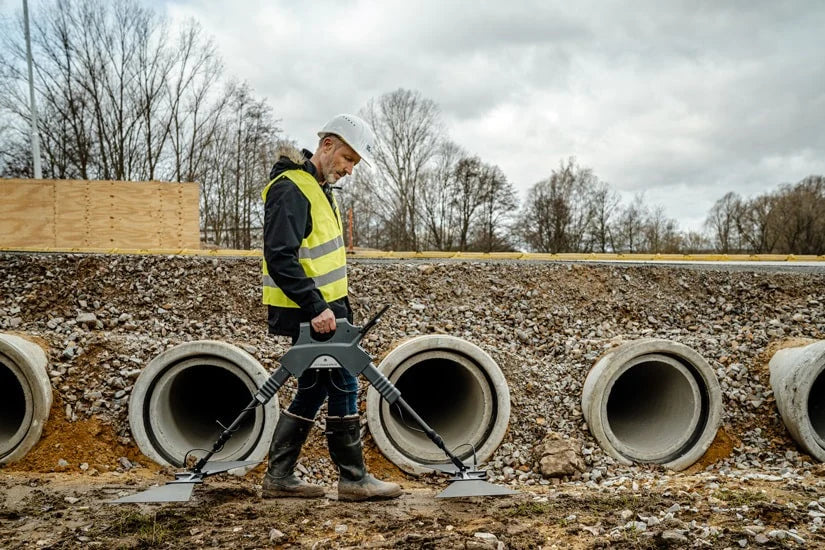

The radar penetrating Gepard uses an all-directional unshielded transmission system to achieve maximum depths of up to 40 meters (131 ft). A single user can easily control the agile and compact unit using an Android Tablet PC.

Gepard GPR 3D's radio detection and range (RADAR) send a signal into the soil and expect the signal to reflect or echo to identify anomalies in the surface.

Detectable Objects and Structures

• underground walls, basements and concrete reinforcements
• hidden cavities, graves and sepulchers
• water level and underground rivers and aquifers
• buried pipelines, conduits and cable harnesses
• backfilled wells, galleries, trenches and dugouts
• septic tanks, distribution boxes and drainage pipes
• secret tunnels, bunkers and shelters
• buried treasure chests, statues and caches

Optimization of Ground Surveys

The Gepard ground penetrating radar is using a multiple transmission frequency range starting at 60 MHz up to 300 MHz which is realized by adjustable telescopic antennas. It furthermore supports many automatic adjustments to optimize your ground surveys on specific soil types, which makes the handling of the Gepard ground radar very easy. You just set your depth resolution and start surveying.

Measurement Data Analysis with Android Software

The measured data of the ground penetrating radar is immediately transferred to the Android Tablet PC. The Android software receives the data via WiFi and displays it directly on screen.

The software offers the option of integrating a GPS signal or Google Maps, filtering automatically and entering notes for later recollection of specific scan details. Additionally, the automatic filtering option improves the results of your scan and assists in finding hidden objects and structures more easily. Due to the integrated GPS all scan positions can be stored along with the scan data.

Delivery Scope

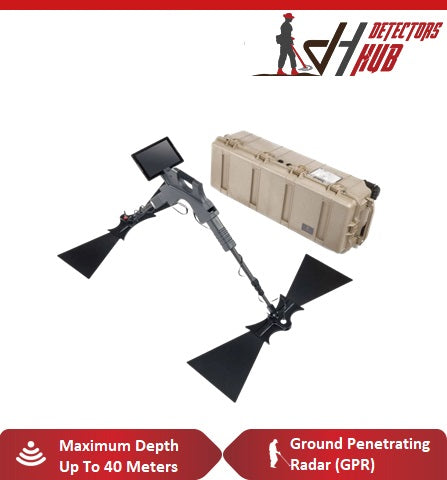

1x       Control unit

1x       GPR receiving unit with 2 triangular antennas

1x       GPR transmitting unit with 2 triangular antennas

2x       Telescopic shaft

1x       Android Tablet PC

1x       Waterproof and shock resistant Pelican case

1x       Bluetooth headphones

1x       Charging adapter and power supply

1x       Travel adapter

1x       User’s manual

Specifications

Control unit

Dimensions (H x W x D): 450 x 260 x 130 mm

Weight: approx. 1.6 kg

Input voltage (max.): 8.4 V DC / 1.0 A

Operating temperature: –20°C – 55°C

Storage temperature: –25°C – 60°C

Waterproof: No

Operating time: approx. 4 hours

Air humidity: 5% – 70%

Feedback: acoustic, visual

Protection Type: IP 20

Data Transmission Technology: WiFi, 2.4 GHz

Transmission Frequency Range: 60 – 300 MHz

Timing/Sampling Adjustments: 4 Levels

Complete Cycle Measurements: 9 per second

Telescopic shaft

Dimensions (H x W x D): 70 x 60 x 590–1630 mm

Weight: 0.80 kg

Operating temperature: –20°C – 55°C

Storage temperature: –25°C – 60°C

Waterproof: No

Air humidity: 5% – 70%

Protection Type: IP 20

Internal Battery: 7.26 V / 2600 mAh

Triangular antenna (unshielded)

Dimensions (H x W x D): 1010 x 330 x 50 mm

Weight: 1.50 kg

Operating temperature: –20°C – 55°C

Storage temperature: –25°C – 60°C

Waterproof: No

Air humidity: 5% – 70%

Protection Type: IP 20

The technical data are average values. Minor deviations are possible during operation.
