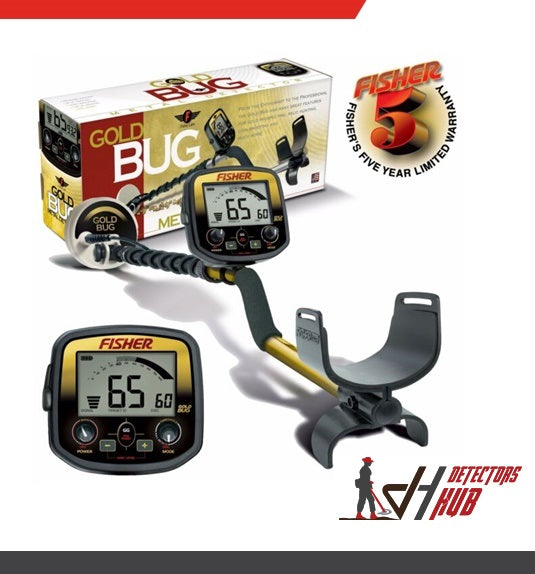

Fisher Gold Bug Metal Detector

Find Coins, Rings, Relics & Jewels! More than a Hot Gold Machine, with several user-intuitive features, the Gold Bug can make modifications a snap. If you're not in the Goldfields, just switch modes and get ready for coin shooting and even relic hunting. Today, you will not find a deeper, easier to use the lightweight gold detector to find gold nuggets, and don't worry, the little Gold Bug will also find the larger nuggets.

Features:

• Adjustments to the Threshold and Gain
• Jacks 1/4 and 1/8-inch Headphones
• Power Supply 1 - 9V
• Lightest Weight / Best Ergonomics in the Industry
• 2 Search Modes: Discriminate and All Metal

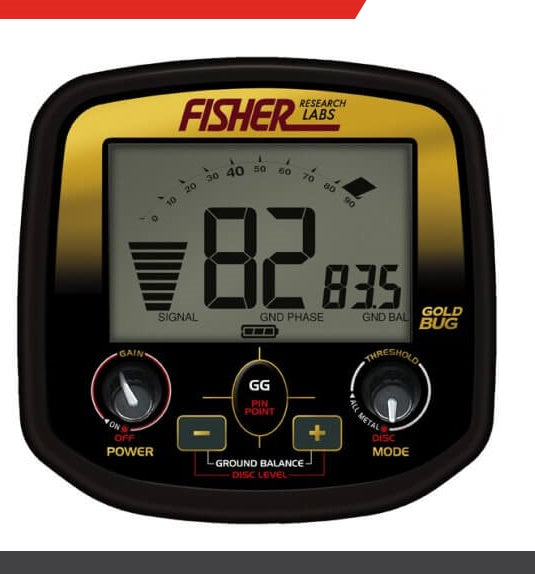

• Large LCD screen with 0-99 Display for Numeric Target Recognition
• Alert for Wide Target
• Indicator of Depth Readout and Operating Signal Power
• Pinpoint No-Motion
• Ground Grab Assisted by Computer
• Ground Grab®, Ground Balancing Computerized
• 2 Sound The Tone
• Super Sensitive

 Recommended for:
Gold Nugget / Prospecting

User Manuals



Fisher_Gold_Bug_User_Manual_-Reader_EN

Fisher_Gold_Bug_User_Manual_-Printer_EN







Technical Specifications

Mechanical:	S-rod with electronics housing mounted on the handgrip, 3-piece breakdown, batteries under the elbow, 2-way armrest adjustment — forward/backward & around the forearm

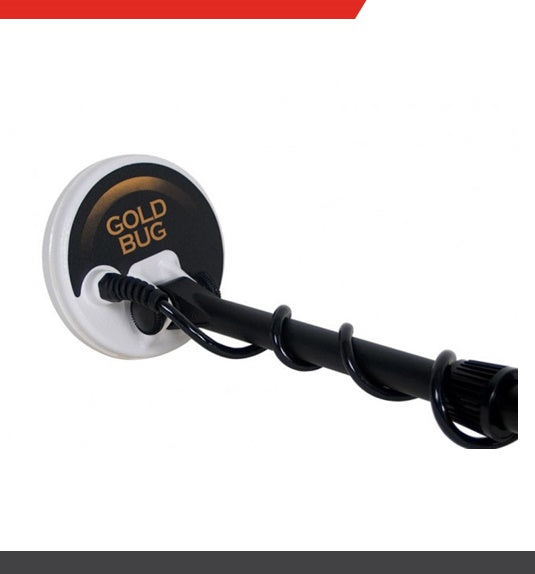

Searchcoil	5 inch (12.7 cm) closed-frame round biaxial, waterproof
Batteries:	Single 9-volt rectangular alkaline
Weight:	2 lbs, 8 oz with battery installed
Operating Principle:	VLF induction balance
Operating Frequency:	19 kHz, crystal controlled
Reactive Overload:	10,000 micro-cgs (with standard search coil)
Resistive Overload:	1,200 micro-cgs (with standard search coil)
Ground Balancing Range:	From ferrite to salt, inclusive
Discrimination Ground Suppression:	Combination of 2nd and 3rd order methods
ID Ground Suppression:	3rd order
Battery Life:	15+ hours on good quality alkaline
Operating Temp Range:	14 to 122 degrees F (-10 to +50 C)
Operating Humidity Range:	: 0-90% non-condensing
