Pulse Induction (PI) metal detector: developed for natural gold prospection and metal detection

Measuring depth: Down to 3 m (9.8 ft)

Use cases: Ideal for natural gold seekers, militaria and industrial use

Detectable objects: Natural gold and metal objects of any size, developed to ignore unwanted trash such as scrap bottle caps or aluminum foil

Easy to use for inexperienced users and those familiar with PI detectors: only 2 preset controls for volume and sensitivity

 FEATURES

• Exchangeable probes
• Height adjustment
• Inductive search coil
• LED lighting
• Live Sound
• Rechargeable high-capacity battery
• Speaker
• Wireless technology

DESCRIPTION

Even the Greeks of old knew in our world that there's a lot to discover. Besides the elements of our earth, the night sky twinkling of the stars fascinated them to the point that devices developed hundreds of years ago to grasp the universe's mysteries. As a metal detector manufacturer, we remain grounded and commit our new Pulse Nova "Star" to the discovery of the underground objects:

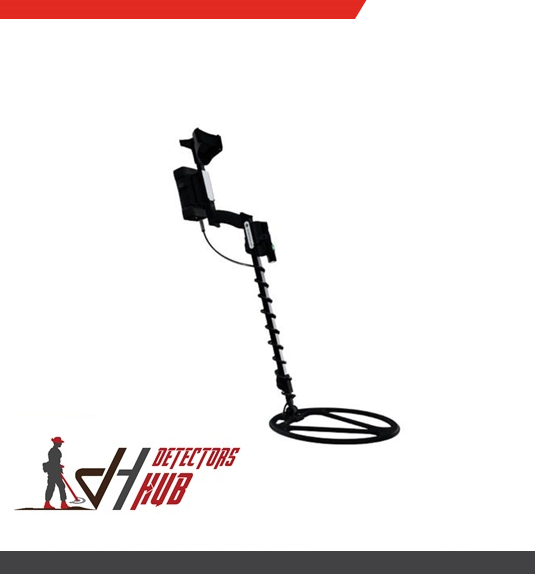

The metal detector Pulse Nova PI from OKM provides extra efficient ground scanning and detects lost pieces of jewels, including rings, charms and earrings, natural gold, such as gold nuggets and military weapons and ammunition up to 3m deep (9.8 ft).

Detection of metals at a depth of up to 3 m (9.8 ft)

Thanks to the pulse induction method the Pulse Nova can reach enormous depths. For these detection depths, Pulse Induction (PI) offers key advantages compared to other measuring technology;

The PI metal detector's search coil is available as requested. The bigger the metal detector spindle, the greater the search depth.

The detector operating principle allows particularly high transmission power, which allows objects to be detected more deeply.

The detection of metal objects in the ground as deeply as possible always depends on factors such as the size, location, and terrestrial nature. In general, these factors apply to all metal detectors:

The bigger the object, the deeper it can be detected.

As long as the object is underground, it can be detected better. (Halo effect) Deeper objects can be detected when the metal detector coil is larger.

The accuracy of detection is determined by the conduciveness, shape, and position of the object.

The composition of the soil and the layers of the soil affect the depth.

The Pulse Nova pulse induction metal detector has another advantage over passively measuring OKM ground scanners; it achieves clear measured values even in heavily mineralized soils and is, therefore, able to directly detect natural gold and precious metal gemstones.

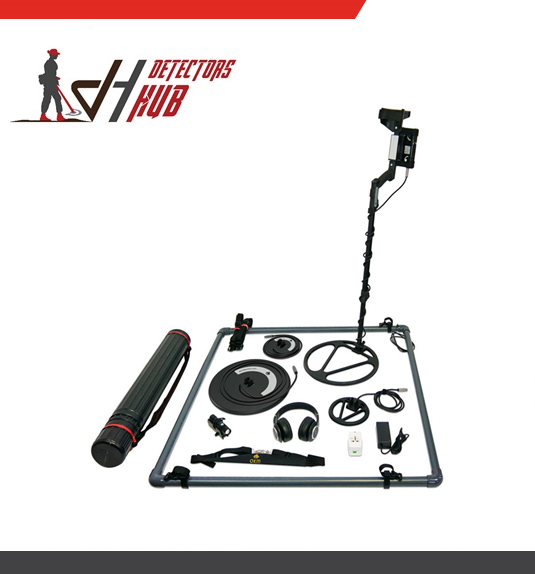

DELIVERY SCOPE

1x        Control Unit with Carrying Strap

1x        Telescopic Rod

1x        Wireless Bluetooth Headphones

1x        LED Flashlight

1x        Charger

1x        Travel Adapter

1x        Search Coil 38 cm

1x        OPTIONAL Search Coil 18 cm

1x        OPTIONAL Frame Coil with Shipping Tube

1x        Quick Start Guide

Specifications

Control Unit

Dimensions (H x W x D): 180 x 115 x 70 mm

Weight: 0.64 kg

Input Voltage (max): 4.8 - 20 V DC, 3.16 A, 20 W

Safety Class: IP40

Operating Time (fully charged, 25° C): approx. 8 hours

Charging Time @ 19 V: approx. 3 hours

Feedback: acoustic

Operating Temperature: 0°C – 40°C

Storage Temperature: –20°C – 70°C

Waterproof: No

Telescopic Rod

Dimensions (L x W x H): 630 – 1023 x 115 x 200 mm

Weight: 0.90 kg

Search Coil 38 cm

Diameter: Ø 375 mm

Height: 45 mm

Cable Length: approx. 1.50 m

Weight: approx. 0.80 kg

Technology: Bifilar Mono Coil, High Voltage Pulse Induction

Waterproof: Yes

Search Coil 18 cm

Diameter: Ø 175 mm

Height: 45 mm

Cable Length: approx. 1.50 m

Weight: approx. 0.4 kg

Technology: Bifilar Mono Coil, High Voltage Pulse Induction

Waterproof: Yes

Frame Coil Xi104

Dimensions, disassembled (D x L): Ø 130 x 1120 mm

Weight (with shipping tube): approx. 3.26 kg

Dimensions, assembled (L x W x H): 1040 x 1040 x 60 mm

Weight (without shipping tube): approx. 2.35 kg

Technology: Mono Coil, High Voltage Pulse Induction

Waterproof: No

The technical data are average values. Minor deviations are possible during operation.
